Windows Server hosts that have been promoted to domain controller can store DNS zone data in the Active Directory Domain Services (ADDS) rather than in a zone text file. This is known as an AD-integrated DNS zone. Integrated DNS zones can only be created on an AD domain controller that has the DNS server role installed.
Advantages of Active Directory integrated DNS zones:
- DNS zone data is transferred to other DNS servers in the domain and forest using the standard Active Directory replication mechanism rather than classic zone transfer method. Multi-master replication mode used for AD-integrated zones, meaning that any domain controller can write updates to the zone. When a DNS zone is replicated, only the changes between the domain controllers are transferred, not the entire zone.
- Secure update mode is supported for integrated zones. In this mode, only authorized clients can update their records in the DNS zone.
- In order to restrict the access to the records in the DNS zone, Access Control Lists are used.
- The DNS zone and the DNS records are stored in the Application Directory Partition in the AD database.
To create a new integrated DNS zone in your AD domain:
- Open the DNS Manager snap-in (dnsmgmt.msc);
- Connect to a domain controller, right-click Forward Lookup Zones, and select New Zone;

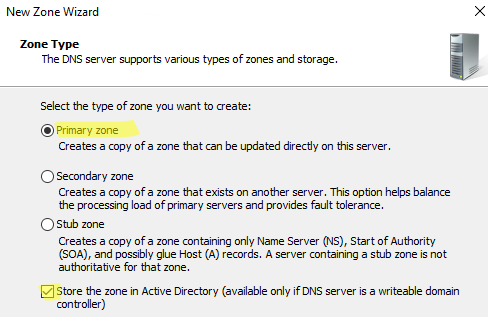

- Select the Primary zone type and enable the option Store this zone in Active Directory (available only if DNS server is a writale domain controller).
Note. Secondary and Stub DNS zones cannot be AD-integrated.

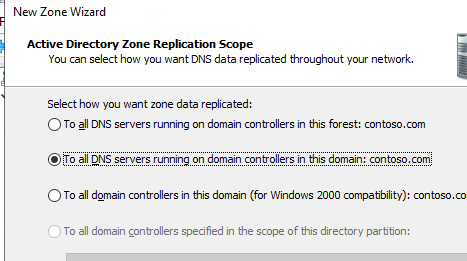

- Specify whether to allow the DNS zone to be replicated to all DCs in the domain or in the Active Directory forest;
- Type the zone name: theitbros.loc;

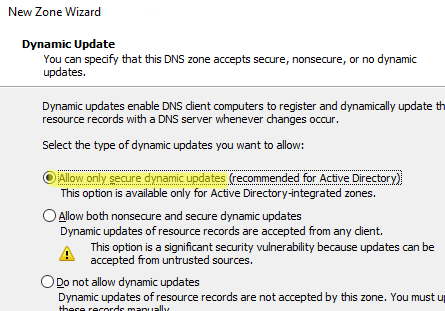

- Choose whether you want to allow only dynamic updates. For Active Directory, it is recommended that you always use the Allow only security dynamic updates option;
- Click Next > Finish and a new primary AD-integrated zone will appear in the DNS console;
This zone will be automatically replicated to all of the other domain controllers in the AD.
Hint. In the same way, you can create an AD-integrated reverse lookup DNS zone.
AD-integrated zones are stored in one of the following ADDS LDAP partitions: DC=DomainDNSZones,DC=contoso,DC=com or DC=ForestDNSZones,DC=contoso,DC=com. This depends on the replication scope you have selected for the zone.
You can connect to and manage the AD directory partition that stores integrated zones using the ADSIEdit console.
- Open the adsiedit.msc MMC snap-in;
- Select Connect to > Connection Point > type a Distinguished name: DC=DomainDNSZones,DC=contoso,DC=com

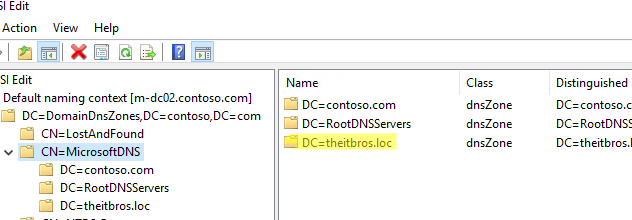

- Expand your domain DN > CN=MicrosoftDNS. An object of the dnsZone class must be created in this section for each DNS-integrated zone.

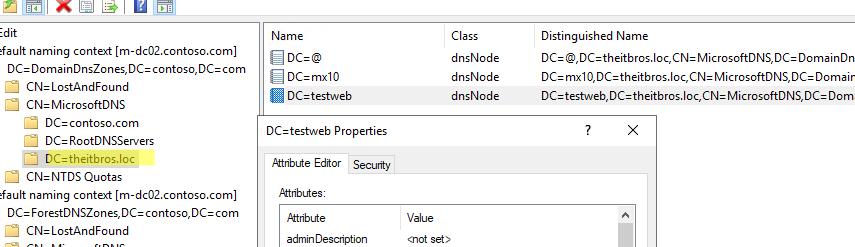

- When you expand the dnsZone object, you will see a list of records for that DNS zone in the form of separate dnsNode objects;
- You can use the built-in attribute editor for AD objects to manually change the parameters of any DNS zone record;
You can also use PowerShell to create an integrated primary DNS zone:
Add-DnsServerPrimaryZone -Name theitbros.local -ReplicationScope “Forest” –PassThru
Add the reverse lookup zone AD-integraded zones:
Add-DnsServerPrimaryZone -NetworkID “10.24.0.0/24” -ReplicationScope “Forest”

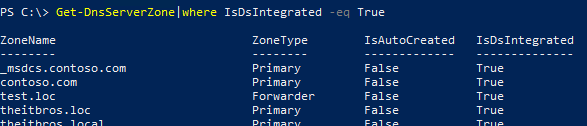

List integrated DNS zones:
Get-DnsServerZone|where IsDsIntegrated -eq True
